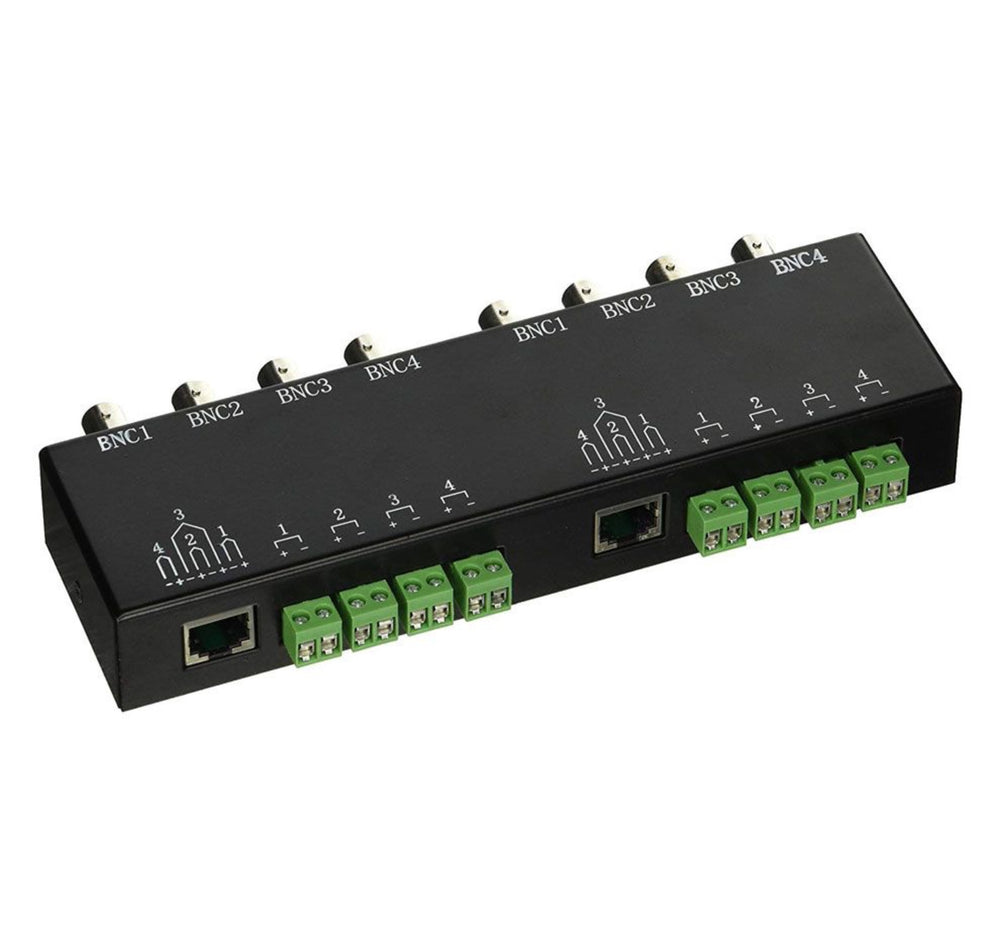

Passive 8-Channel Video Balun Transmitter/Receiver for HD-TVI and HD-CVI
Product code: 1547
Includes VAT. Shipping is calculated at checkout.
Available to order
Contact us for delivery time
For delivery time and compatibility: 216 002 5669
P808
8-channel passive video balun
Combines 8 analog video channels over UTP Cat5e / Cat6 cable for installations with HD-TVI, HD-CVI, or AHD, according to the catalog.
- Channels: 8
- Type: Passive video balun
- Cable: UTP Cat5e / Cat6
Multi-channel consolidation
The 8-channel version organizes multiple video lines in a single unit.
Video over UTP
Twisted pair cable is used to transmit analog video. A compatible balun is also required at the other end.
Route planning
The actual distance depends on cable quality, resolution, and device compatibility. Stated distances are indicative.
Key features
| Channels | 8 |
|---|---|
| Type | Passive video balun |
| Cable | UTP Cat5e / Cat6 |
Equipment and installation
| Video signals | HD-TVI / HD-CVI / AHD and analog video |
|---|---|
| Stated analog video distance | 300–500 m, depending on the installation |
| Stated HD video distance | 100–200 m, depending on the installation |
Selection and installation
- Camera and recorder: Check the signal type and resolution.
- Cable and ends: Use suitable UTP and compatible baluns, with the pairs correctly matched.
- Video check: Test each channel along the complete route before final installation.
Technical documentation and PDF
bfocus technical presentation · P808
This is analog video transmission, not network Ethernet or PoE. Distances are taken from the catalog and need to be confirmed for the specific signal and cable.
