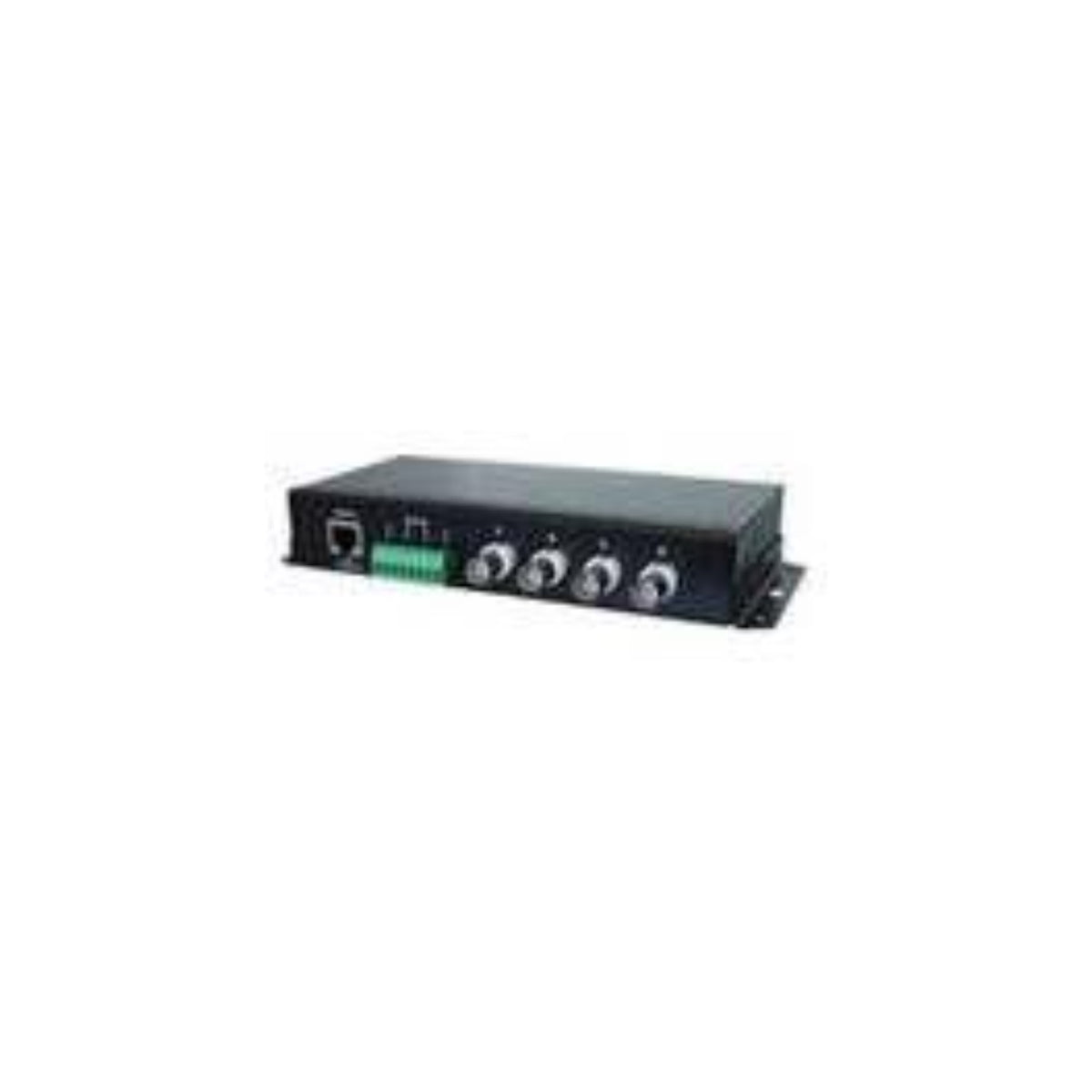

Passive 4-Channel Video Balun Transmitter/Receiver for HD-TVI, HD-CVI
Product code: 1545
Includes VAT. Shipping is calculated at checkout.
Available to order
Contact us for delivery time
For delivery time and compatibility: 216 002 5669
P804
4-channel passive video balun
Combines 4 analog video channels over UTP Cat5e / Cat6 cable, for installations with HD-TVI, HD-CVI, or AHD, according to the catalog.
- Channels: 4
- Type: Passive video balun
- Cable: UTP Cat5e / Cat6
Multi-channel connection
The 4-channel version organizes multiple video lines in one unit.
Video over UTP
Twisted pair is used to transmit analog video. A compatible balun is also required at the other end.
Planning the route
The actual distance depends on cable quality, resolution, and device compatibility. The stated distances are indicative.
Key features
| Channels | 4 |
|---|---|
| Type | Passive video balun |
| Cable | UTP Cat5e / Cat6 |
Equipment and installation
| Video signals | HD-TVI / HD-CVI / AHD and analog video |
|---|---|
| Stated analog video distance | 300–500 m, depending on the installation |
| Stated HD video distance | 100–200 m, depending on the installation |
Selection and installation
- Camera and recorder: Check the signal type and resolution.
- Cable and connectors: Use suitable UTP and compatible baluns, with the pairs correctly matched.
- Video check: Test each channel over the complete route before final installation.
Technical documentation and PDF
bfocus technical overview · P804
This is analog video transmission, not network Ethernet or PoE. The distances are taken from the catalog and should be verified for the specific signal and cable.
