Passive 16-Channel Video Balun Transmitter/Receiver for HD-TVI, HD-CVI
Product code: 1606
Includes VAT. Shipping is calculated at checkout.
Available to order
Contact us for delivery time
For delivery time and compatibility: 216 002 5669
P816

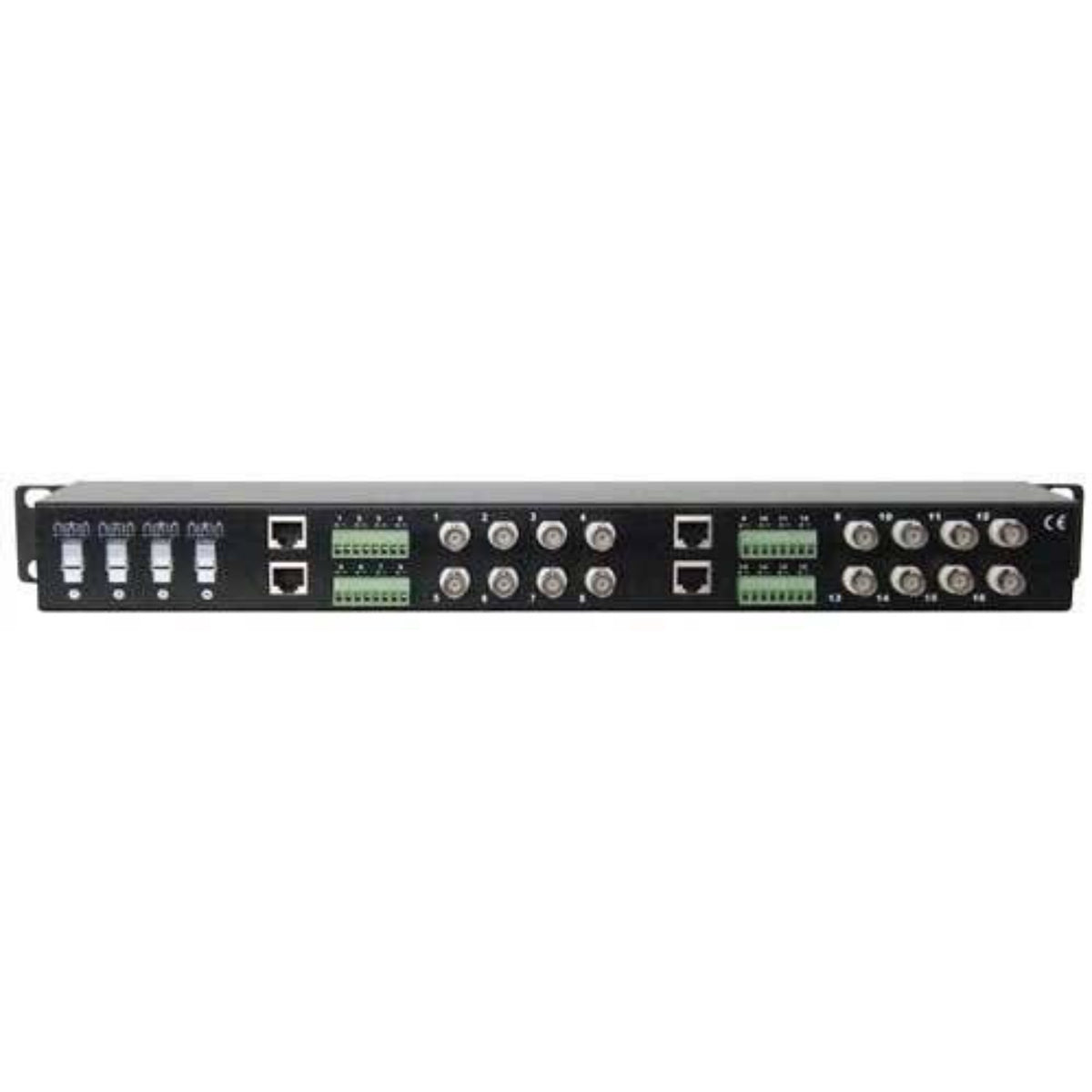

16-channel passive video balun
Combines 16 analog video channels over UTP Cat5e / Cat6 cable for installations with HD-TVI, HD-CVI or AHD, as specified in the catalog.
- Channels: 16
- Type: Passive video balun
- Cable: UTP Cat5e / Cat6
Multi-channel consolidation
The 16-channel version organizes multiple video lines in a single unit.
Video over UTP
Twisted-pair cable is used to transmit analog video. A compatible balun is required at the other end as well.
Planning the route
The actual distance depends on cable quality, resolution and device compatibility. Stated distances are indicative.
Key features
| Channels | 16 |
|---|---|
| Type | Passive video balun |
| Cable | UTP Cat5e / Cat6 |
Equipment and installation
| Video signals | HD-TVI / HD-CVI / AHD and analog video |
|---|---|
| Stated analog video distance | 300–500 m, depending on the installation |
| Stated HD video distance | 100–200 m, depending on the installation |
| Dimensions L × W × H | 430 × 85 × 44.5 mm |
| Weight | 1,250 g |
| Housing | Galvanized, black |
| Not included | BNC connectors and mounting brackets |
Selection and installation
- Camera and recorder: Check the signal type and resolution.
- Cable and ends: Use suitable UTP and compatible baluns, with the pairs correctly matched.
- Video check: Test each channel across the entire route before final installation.
Technical documentation and PDF
bfocus technical presentation · P816
This transmits analog video, not network Ethernet or PoE. Distances are taken from the catalog and need to be verified for the specific signal and cable.
