Home / Security cameras / DS-2CE76K0T-LMFS (2.8mm) HIKVISION Smart Hybrid Light 3K

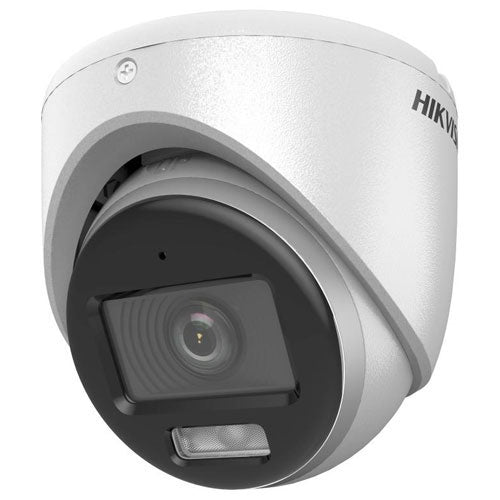

DS-2CE76K0T-LMFS (2.8mm) HIKVISION Smart Hybrid Light 3K

Hikvision · Security cameras

DS-2CE76K0T-LMFS (2.8mm) HIKVISION Smart Hybrid Light 3K

Product code: 341

€72.64

Includes VAT. Shipping is calculated at checkout.

For delivery time and compatibility: 216 002 5669

IN YOUR INSTALLATION

See what the numbers mean.

How wide is the camera view?

Distance and lens angle determine the horizontal width of the image.

Horizontal viewing angle: 104,9°

Geometric approximation on a flat surface perpendicular to the lens. It does not calculate face or number plate recognition.

frame width

YOUR RECORDING

How much storage do you need?

Continuous recording, using the average bitrate you choose.

The initial values are an example for continuous recording 24 hours a day. Enter your installation's actual average bitrate.

For an analogue camera, use the bitrate set on the DVR/XVR for each channel.

What does Mbps mean, and where do I find it?

Mbps is the video's data rate, not its resolution in megapixels. Find it in the camera or recorder's recording settings. It changes with compression, frame rate and movement in the scene. Event-only recording requires a different amount of storage.

Decimal TB, with an additional 20% margin. The calculation uses bitrate and duration; also check the recorder's drive limits.

Hikvision

Hikvision analog security camera with a 2.8 mm lens.

At a glance

Manufacturer Hikvision
Model DS-2CE76K0T-LMFS (2.8mm)
Lens 2.8 mm
Technology TVI / CVI / AHD / CVBS

Technical specifications

  • DS-2CE76K0T-LMFS (2.8mm)
  • HIKVISION Smart Hybrid Light 3K 4-in-1 TVI/CVI/AHD/CVBS + built-in microphone via coaxial cable (TVI only), 2.8 mm lens, 104.9° FOV (horizontal viewing angle), 24/7 Color View, 3K 2960 × 1665 resolution, Ultra Low Light 0.01 Lux, Smart Hybrid IR up to 30 m or White Light up to 20 m, Light Alarm, OSD menu, 3D DNR, Digital WDR, max. power consumption 2.9 W, IP67 protection rating, junction box (not included) DS-1280ZJ-XS

Product documents

Technical documentation and PDFs

Manufacturer datasheet — DS-2CE76K0T-LMFS ↗Manufacturer datasheet
