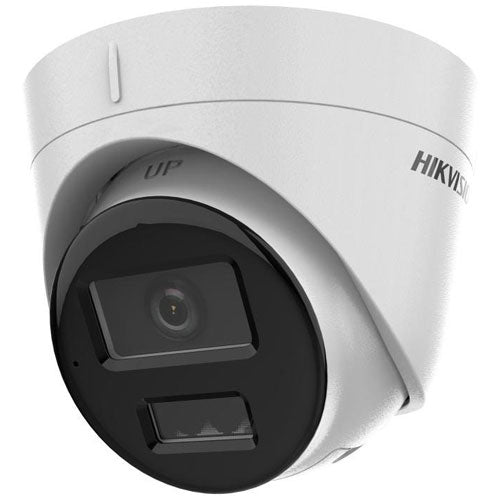

DS-2CD1383G2-LIUF (2.8mm) HIKVISION 8 MP IP Camera, H.265+

Name: DS-2CD1383G2-LIUF (2.8mm) HIKVISION 8 MP IP Camera, H.265+
Brand: Hikvision
SKU: 303
Price: 205.11 EUR
Availability: InStock

Product code: 303

€205.11

Includes VAT. Shipping is calculated at checkout.

For delivery time and compatibility: 216 002 5669

IN YOUR INSTALLATION

See what the numbers mean.

How wide is the camera view?

Distance and lens angle determine the horizontal width of the image.

Horizontal viewing angle: 113°

Distance from the camera5 m

Geometric approximation on a flat surface perpendicular to the lens. It does not calculate face or number plate recognition.

frame width

YOUR RECORDING

How much storage do you need?

Continuous recording, using the average bitrate you choose.

Cameras Mbps / camera Days

The initial values are an example for continuous recording 24 hours a day. Enter your installation's actual average bitrate.

What does Mbps mean, and where do I find it?

Mbps is the video's data rate, not its resolution in megapixels. Find it in the camera or recorder's recording settings. It changes with compression, frame rate and movement in the scene. Event-only recording requires a different amount of storage.

Decimal TB, with an additional 20% margin. The calculation uses bitrate and duration; also check the recorder's drive limits.

Hikvision

Hikvision security camera with 8 MP resolution and a 2.8 mm lens.

At a glance

Manufacturer	Hikvision
Model	DS-2CD1383G2-LIUF (2.8mm)
Resolution	8 MP
Lens	2.8 mm
Protection rating	IP67

Technical specifications

DS-2CD1383G2-LIUF (2.8mm) HIKVISION 8 MP IP Camera, H.265+ 8MP 3840 × 2160 resolution, Lux 0.01, FOV 113° Smart IR & White Light up to 30m distance 3D DNR, Wide Dynamic Range (WDR) 120 dB Built-in microphone micro SD/SDHC/SDXC slot, up to 512 GB Consumption Max. 5W / PoE, Dimension Ø110mm × 93mm Built-in microphone, Protection rating IP67, Reset Key Smart Human and Vehicle Detection Compatible bracket DS-1280ZJ-S, DS-1272ZJ-110-TRS

Product documents

Technical documentation and PDFs

Manufacturer datasheet — DS-2CD1383G2-LIUF ↗Manufacturer datasheet
