AJAX FIRE PROTECT WHITE
Product code: 38105.10.WH1
Includes VAT. Shipping is calculated at checkout.
For delivery time and compatibility: 216 002 5669
Ajax

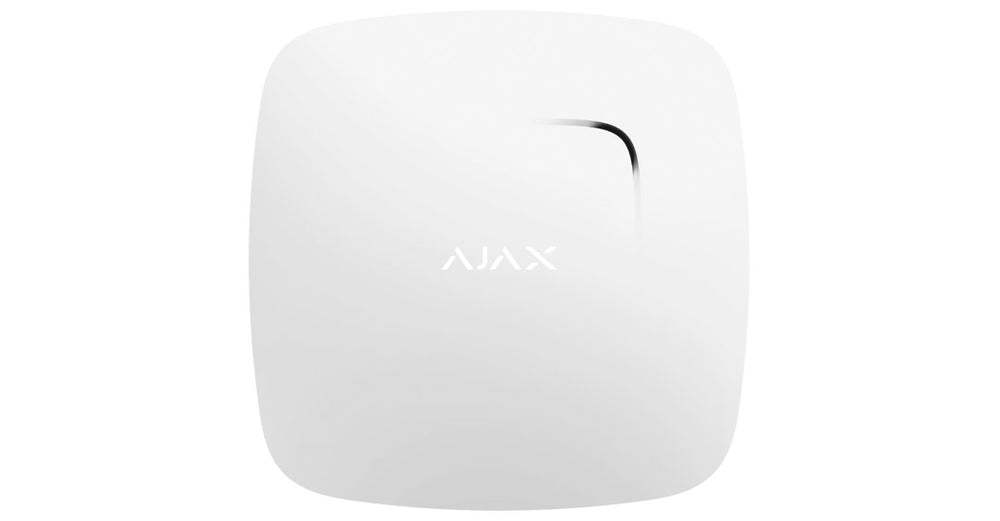

Wireless smoke and temperature detector
FireProtect detects smoke and a rapid rise in temperature. It features a built-in buzzer and communicates with the Ajax system.
- Use: Indoor
- Detection: Smoke and temperature
- Local alert: Built-in buzzer
- Protocol: Jeweller
Features in practice
What it adds to your system
The local alert is combined with notifications through the system. This FireProtect is not the Plus version with a CO sensor.
Control through Ajax
The device is integrated into the system management platform, allowing notifications and permitted functions to be configured for the specific space.
Complete installation
Placement, hub compatibility and operational testing should be selected according to the model’s official manual.
Technical specifications
Operation and connection
| Use | Indoor |
|---|---|
| Detection | Smoke and temperature |
| Local alert | Built-in buzzer |
| Protocol | Jeweller |
Power, installation and construction
| Sensors | Photoelectric smoke and temperature sensors |
|---|---|
| Temperature threshold | +54°C to +65°C |
| Siren | 85 dB |
| Power supply | 2 × CR2 and backup CR2032 |
| Dimensions / weight | 132 × 132 × 31 mm / 220 g |
Installation
- Compatible Ajax hub: Confirm the model and version before adding the device.
- Placement and signal: Choose a location according to the manual and check the wireless signal.
- Configuration and testing: Add it to the correct zone, configure functions and test an event.
Technical documentation and PDF
Battery life and performance depend on operating conditions. For functional limits, compatibility and installation, consult the documentation for the specific version.
